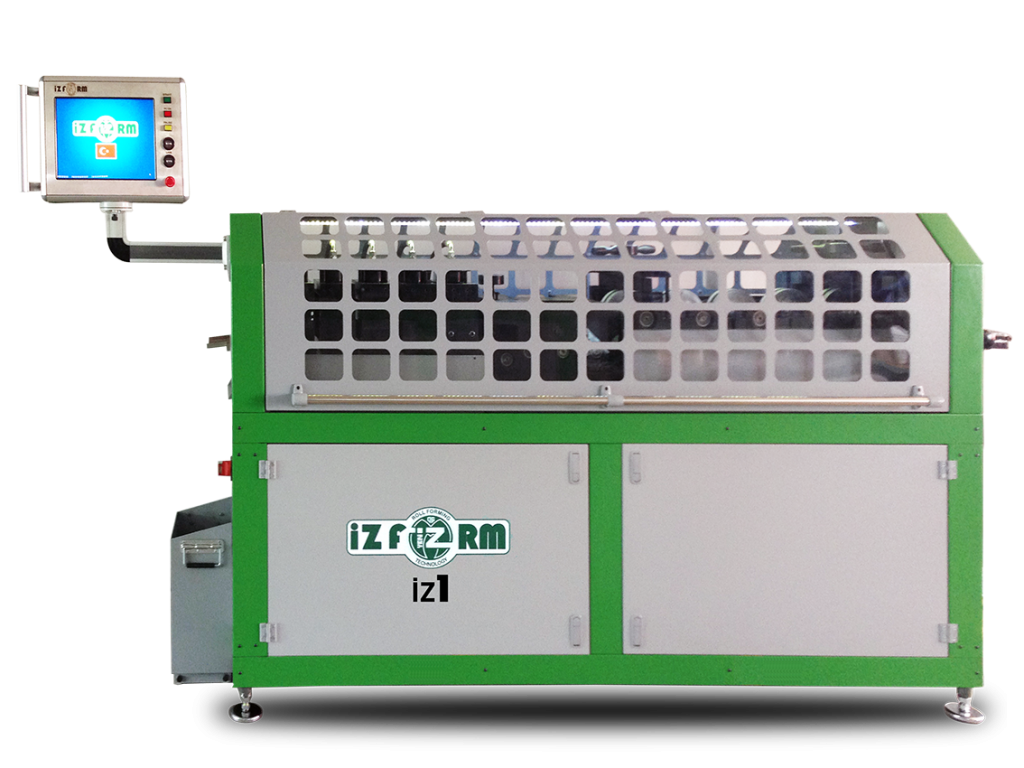

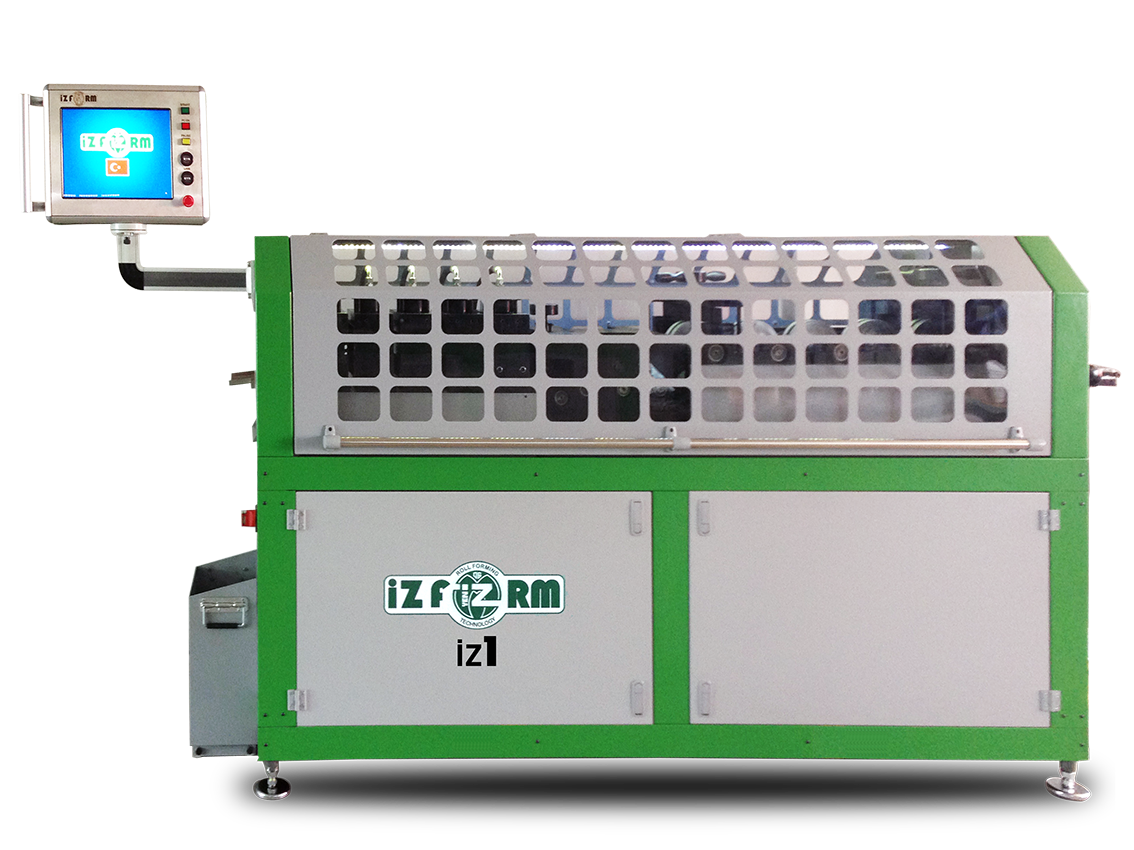

İZ1 |
|
| Profile Web Size | 50-60 mm or one of them |
| Steel Gauge Thickness | 0.5-1.20 mm |
| Profile Type | C/U |
| Cordon Forming on Profile Flange | Yes |
| Printer | Inkjet Type |
| Electronically Controlled Automatic Toolhead Oiling System | Yes |
| Production Speed | 600 m/hour |
| Dimensions | 2550 mm x 700 mm x 1450 mm |
| Main Power Supply | 3 Phase, 380-400 V AC 50/60 Hz |
| Total Power | 10 KW |
| Working Environment Temperature | (-10°C ~ 40°C) if above or below this range, optional cooling system is used |
| Hydraulic Tank Capacity | 70 L |
| User Interface | Touchscreen PC WIN 7 OS |
| Weight | 1600 Kg |
| Decoiler Capacity | 1.5 Tons |
| Design Software | VERTEX BD FRAMER |
| Production Software | İZFORM OS |
Toolheads on İZ1 |
|
| Rivet Hole |
Standard |
|
Multiple Rivet Hole |
Optional |
|
Service Hole (32 mm diameter) |
Standard |
|
Service Hole (any diameter) |
Optional |
|
Index Hole (Ground Connection and Joining Panels) |
Optional |
|
Bevelling |
Optional |
|
Notch |
Standard |
|
Swage |
Standard |
|
Flatten |
Standard |
|
Cut |
Standard |
