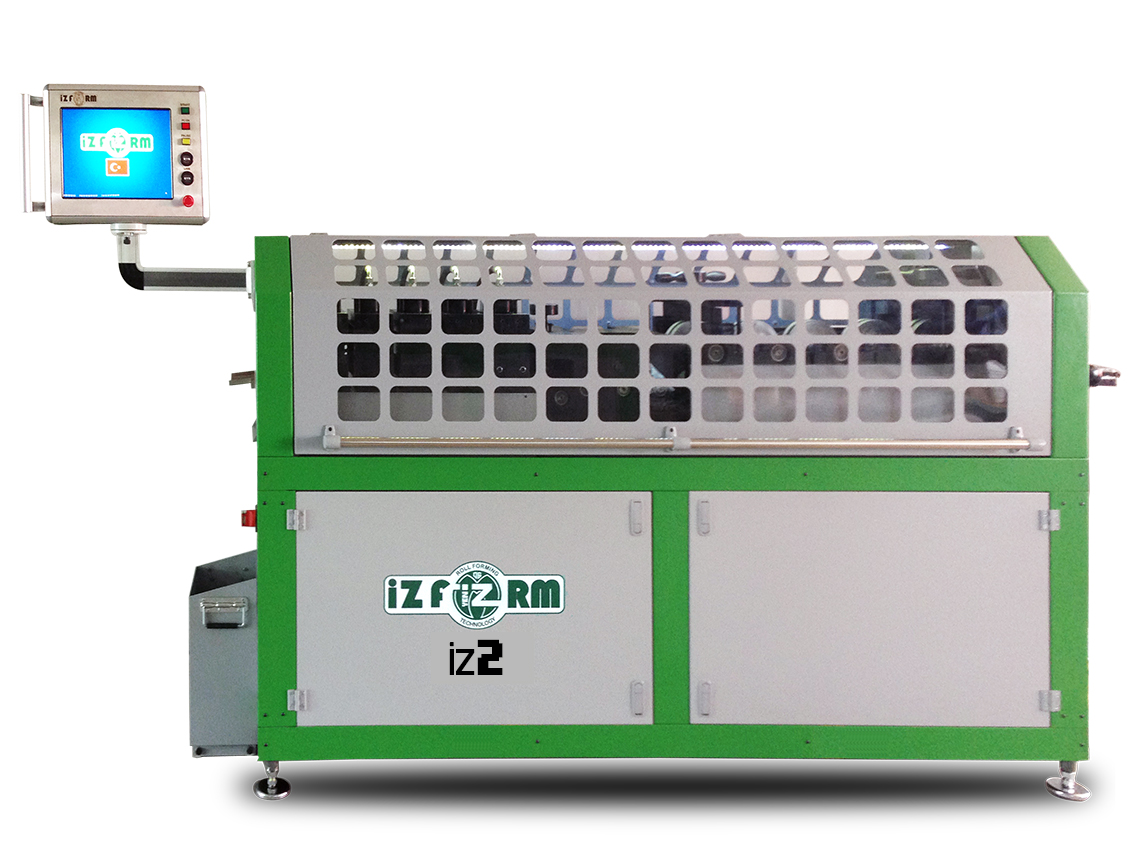

iz2





İZ2

Profile Web Size        One of 75, 90 and 100 mm
Steel Gauge Thickness  0.5-1.20 mm
Profile Type  C/U
Cordon Forming on Profile Flanges Yes
Printer Inkjet Type
Electronically Controlled Automatic Toolhead Oiling System Yes
Production Speed 600 m/hour
Dimensions        2550 mm x 700 mm x 1450 mm
Main Power Supply 3 Phase, 380-400 V AC 50/60 Hz
Total Power 12 KW
Working Environment Temperature (-10°C ~ 40°C) if above or below this range, optional cooling system is used
Hydraulic Tank Capacity 70 L
User Interface Touchscreen PC WIN 7 OS
Weight 1600 Kg
Decoiler Capacity 1.5 Tons
Design Software VERTEX BD FRAMER
Production Software İZFORM OS
