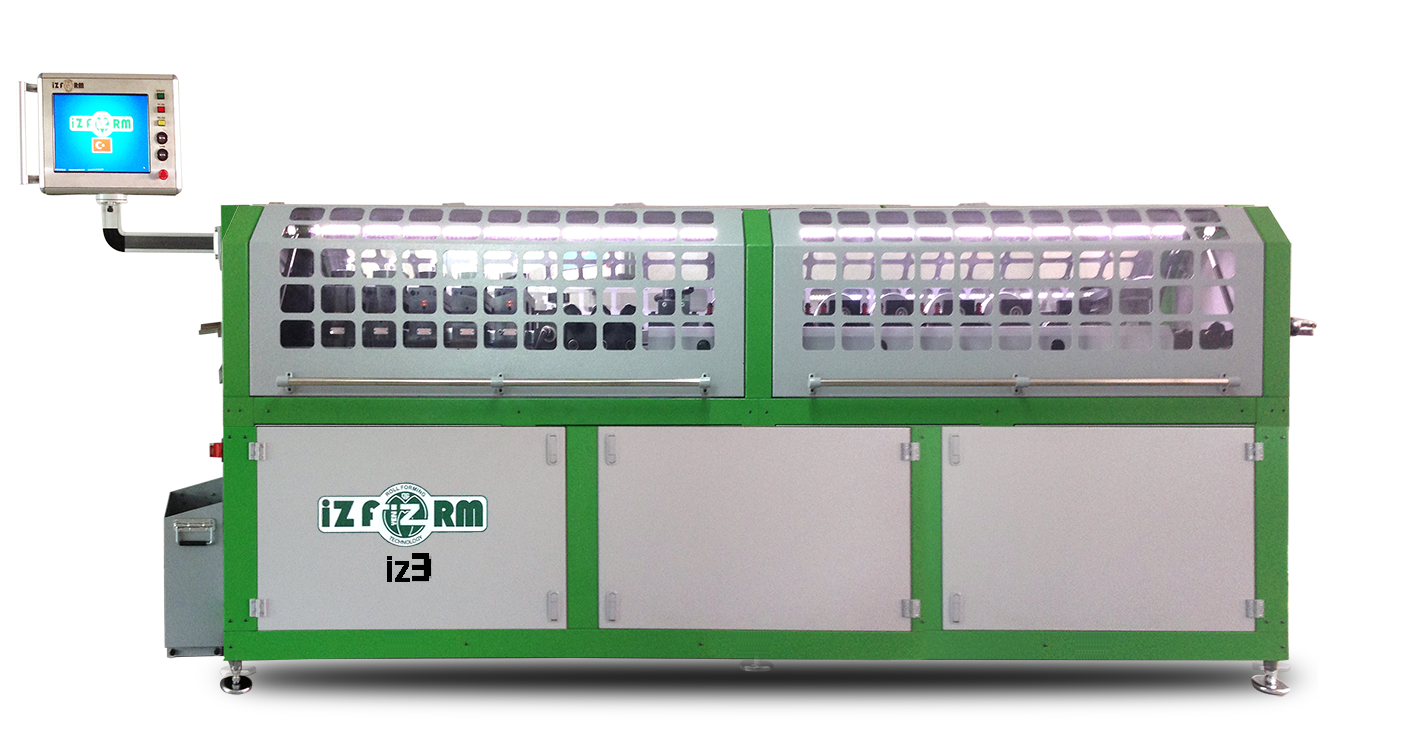

İZ3 |
|
Profile Web Size | 75-90-100-140-150 mm |
Steel Gauge Thickness | 0.5-1.20 mm |
Profile Type | C/U |
Cordon Forming on Profile Flanges | Yes |
Printer | Inkjet Type |
Electronically Controlled Automatic Toolhead Oiling System | Yes |
Production Speed | 600 m/hour |
Dimensions | 3000 mm x 700 mm x 1450 mm |
Main Power Supply | 3 Phase, 380-400V AC 50/60 Hz |
Total Power | 12 KW |
Working Environment Temperature | (-10°C ~ 40°C) if above or below this range, optional cooling system is used |
Hydraulic Tank Capacity | 90 L |
User Interface | Touchscreen PC WIN 7 OS |
Weight | 2100 Kg |
Decoiler Capacity | 2.5 Tons |
Design Software | VERTEX BD FRAMER |
Production Software | İZFORM OS |
Toolheads on İZ3 |
|
Rivet Hole |
Standard |
Multiple Rivet Hole |
Optional |
Service Hole (32 mm diameter) |
Standard |
Service Hole (any diameter) |
Optional |
Index Hole (Ground Connection and Joining Panels) |
Optional |
Bevelling |
Optional |
Notch |
Standard |
Swage |
Standard |
Flatten |
Standard |
Cut |
Standard |
