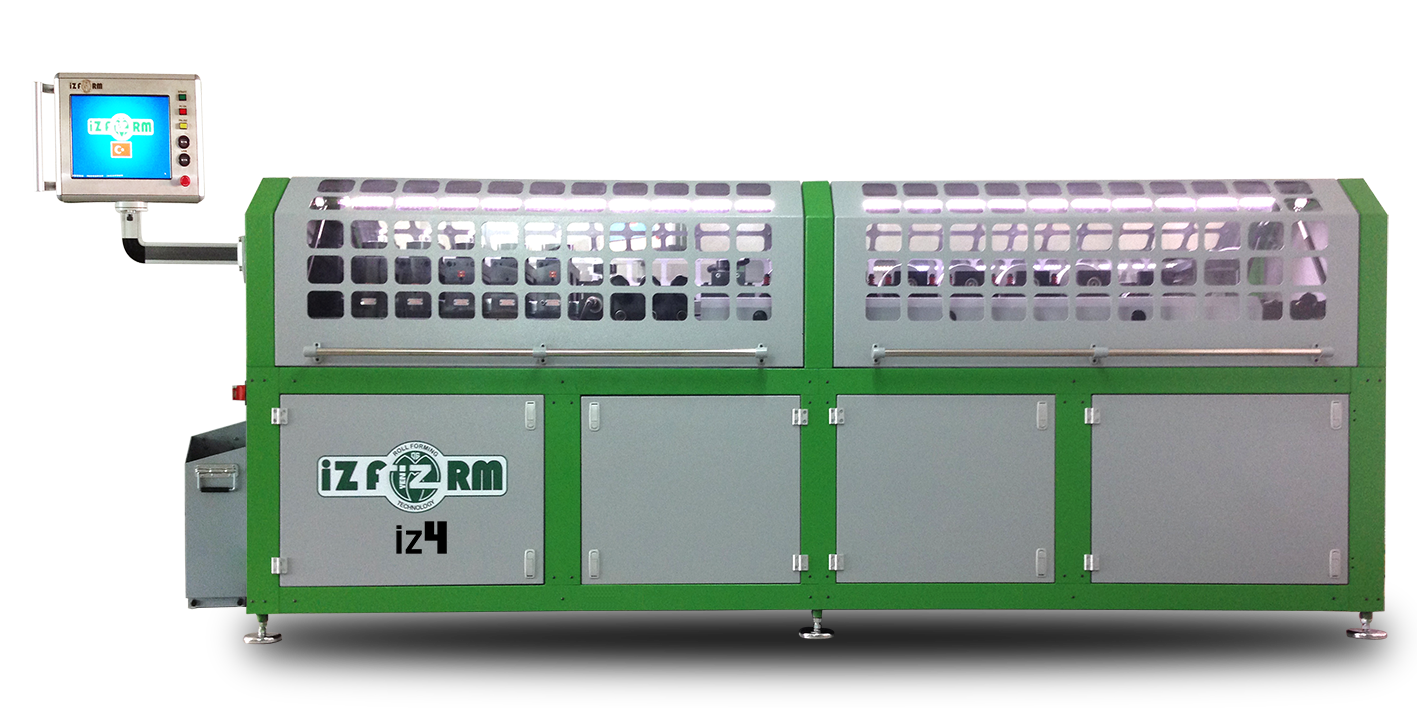

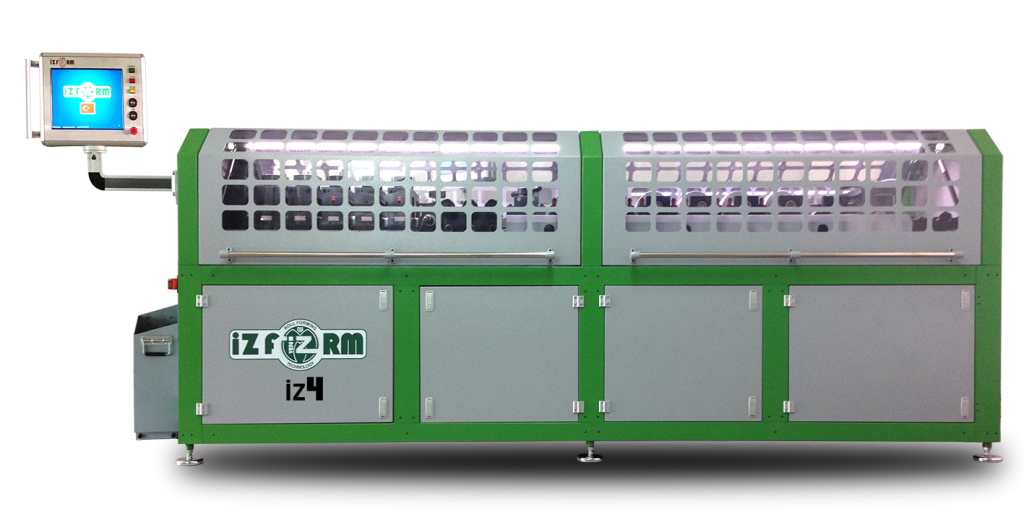

İZ4

Profile Web Size 75-90-100-140-150 mm
Steel Gauge Thickness  0.5-1.60 mm
Profile Type C/U
Cordon Forming on Profile Flanges Yes
Printer Inkjet Type
Electronically Controlled Automatic Toolhead Oiling System Yes
Production Speed 600 m/hour
Dimensions 3800 mm x 850 mm x 1550 mm
Main Power Supply 3 Phase, 380-400 V AC 50/60 Hz
Total Power 15 KW
Working Environment Temperature (-10°C ~ 40°C) if above or belov this range optional cooling system is used
Hydraulic Tank Capacity 90 L
User Interface Touchscreen PC WIN 7 OS
Weight 2600 Kg
Decoiler Capacity 3 Tons
Design Software VERTEX BD FRAMER
Production Software       İZFORM OS
